Robotic application and unique wood bell system for doors and windows

Let’s talk about your project

Robotic application solution with a dedicated Viscobell® for solvent-based and water-based paints

High speed Viscobell®: Up to 1 liter/min at high conveyor speed, with a minimum transfer efficiency of 77%. Cleaning cycle: 5 seconds. Color change: Less than 20 seconds. Viscosity: Up to 5000 cps.

Description

Robotic application of 1K or 2K waterborne paints with very high viscosity using a rotary bell.

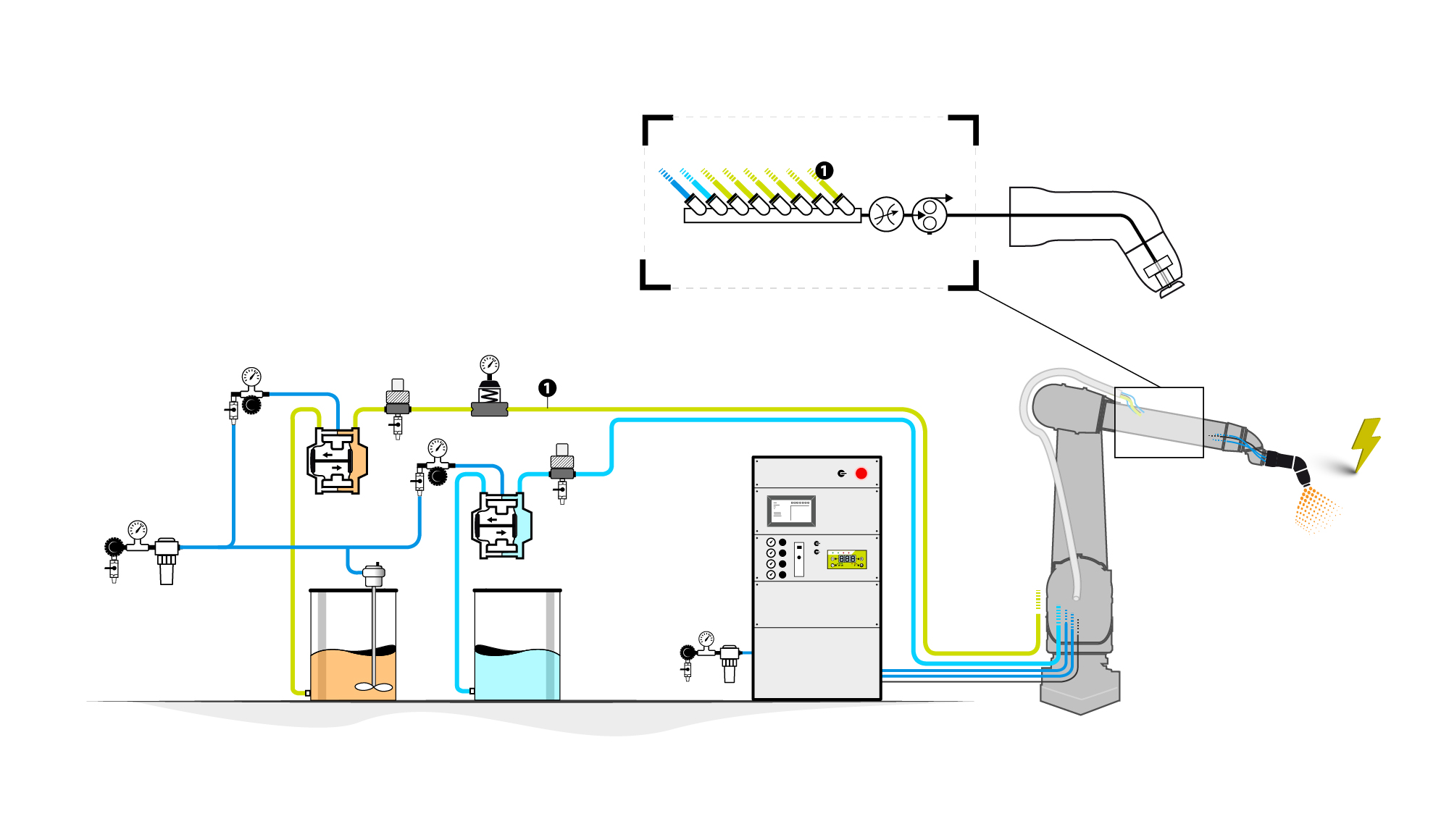

Interactive diagram for information purposes

Related products

Main benefits

Performance: High finishing quality for painting Class A surfaces, and precise dosing and paint delivery.

Productivity: High transfer efficiency ensured by electrostatic bell sprayers.

Sustainability: Standard improvement package to minimize studies, compact color change block to reduce paint losses, flexible robotic process.

Consistency: No risk of paint clogging, and very fast cleaning time for long application periods.

Protect & Enhance

High-performance, long-lasting exterior joinery.

Wood is back at the center of architecture. But performance starts with the finish.

Download the wood white paper

Robotic application and unique wood bell system for doors and windows FAQ

Let's get in touch

  • Why switch to a robotic application rather than remaining in manual or reciprocator mode?

    Robotization brings:
    - Repeatability and homogeneity: Each part receives the same quality of finish, without human variability
    - Reduced scrap: Less overcharging, less rework
    - Flexibility: Programming possible for several ranges (doors, windows, jambs, openings)
    - Safety & ergonomics: Reduction of risks related to manual workstations (VOCs, fatigue, MSDs)

  • What specific advantages does the rotary bell offer compared to conventional guns?

    The rotating bell Viscobell® is designed for hydro and high viscosity paints:
    - High transfer: Up to 90% → less paint loss
    - Better coverage of complex profiles (mullions, grooves, rebates)
    - Thin, even application: Even coat, premium quality
    - Reduced paint consumption: Direct savings (up to 30% off)

    Let's get in touch

  • What is the expected return on investment (ROI)?

    Typical ROI in 12 to 24 months thanks to:
    - Savings in paint and solvents
    - Reduction of rework time
    - Fewer scrap parts
    - Improved productivity and machine utilization rate

  • Is it suitable for modern paints (hydro, UV, high viscosities)?

    Yes, the Viscobell® rotary bell is designed for:
    - Water-based paints → better atomization, regular deposit
    - High viscosity paints → stability and controlled flow
    - New technologies (UV, high-demand varnish) → high-end finish without orange peel skin

  • How to manage production flexibility (part sizes, short runs)?

    Robotization is adapted by programming:
    - Program library according to product dimensions and types
    - Recognition via conveyor + vision possible
    - Reduced changeover time → increased responsiveness

  • What about maintenance and reliability?

    The rotary bell and the robot are designed for intensive use:
    - Simple preventive maintenance (cleaning, turbine change)
    - Optimized component life
    - Technical support & training available for teams

  • Is it a sustainable and environmentally friendly solution?

    Yes, it allows:
    - Reduction of VOCs (less solvents needed)
    - Less paint waste (high transfer efficiency)
    - Energy optimization (fewer rework, fewer cycles)

  • What impact on the productivity and competitiveness of the plant?

    Investing in this technology means:
    - Increase throughput with consistent quality
    - Reduce costs per part (labor + material)
    - Strengthen competitiveness against competitors who are already automating
    - Enhance the industrial image with customers (innovation, sustainability)
